艾维泰科IV3010HD系列单路线性直流稳压电源
艾维泰科IV3010HD系列单路线性直流稳压电源
产品简介
用
■ 研发和设计验证通用测试 ■太阳能光伏模拟测试
■ 常规电子测试、维修 ■ 新动力汽车模拟测试
■ 自动化设备集成测试 ■ 教学实验室
|
型 号 |
IV3010HD |

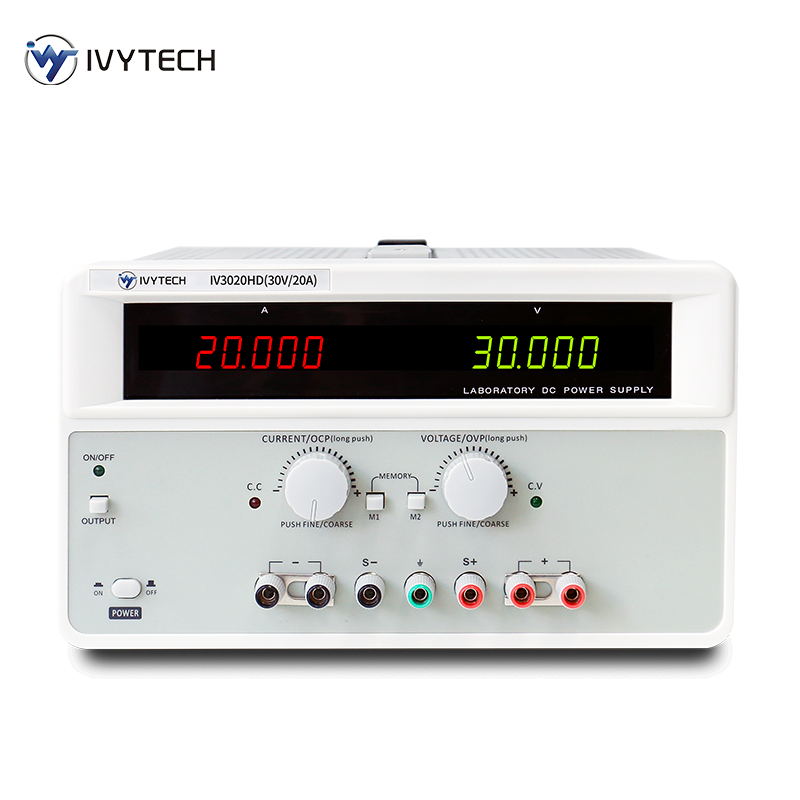

IV3020HD |
IV6005HD |
IV6010HD |
IV10003HD |
IV20002HD |
IV30001HD |
||
|
输入电压 |
AC 220V/110V±10% 50Hz/60Hz |
|
|||||||
|
额定输出 |
电压 |
0~30V |
0~30V |
0~60V |
0~60V |
0~100V |
0~200V |
0~300V |
|
|
电流 |
0~10A |
0~20A |
0~5A |
0~10A |
0~3A |
0~2A |
0~1A |
||
|
负载调节率 |
电压 |
≤0.01%+10mV |
≤0.01%+10mV |
≤0.01%+5mV |
≤0.01%+5mV |
≤0.01%+8mV |
≤0.01%+12mV |
≤0.01%+12mV |
|
|
电流 |
≤0.2%+5mA |
≤0.2%+5mA |
≤0.2%+5mA |
≤0.2%+5mA |
≤0.2%+5mA |
≤0.2%+5mA |
≤0.2%+5mA |
||
|
电源调节率 |
电压 电流
|
≤0.01%+10mV |
≤0.01%+10mV |
≤0.01%+5mV |
≤0.01%+5mV |
≤0.01%+8mV |
≤0.01%+12mV |
≤0.01%+12mV |
|
|
≤0.2%+5mA |
≤0.2%+5mA |
≤0.2%+5mA |
≤0.2%+5mA |
≤0.2%+5mA |
≤0.2%+5mA |
≤0.2%+5mA |
|||
|
设定分辨率 |
电压 电流 |
1mV |
1mV |
1mV |
1mV |
10mV |
10mV |
10mV |
|
|
1mA |
1mA |
1mA |
1mA |
1mA |
1mA |
1mA |
|||
|
设定精确度 |
电压 |
≤0.01%+10mV |
≤0.01%+10mV |
≤0.01%+10mV |
≤0.01%+10mV |
≤0.01%+80mV |
≤0.01%+80mV |
≤0.01%+80mV |
|
|
电流 |
≤0.1%+5mA |
≤0.1%+10mA |
≤0.1%+5mA |
≤0.1%+5mA |
≤0.1%+5mA |
≤0.1%+5mA |
≤0.1%+5mA |
||
|
回读分辨率 |
电压 |
1mV |
1mV |
1mV |
1mV |
10mV |
10mV |
10mV |
|
|
电流 |
1mA |
1mA |
1mA |
1mA |
1mA |
1mA |
1mA |
||
|
回读精确度 |
电压 电流 |
≤0.01%+10mV |
≤0.01%+10mV |
≤0.01%+10mV |
≤0.01%+10mV |
≤0.01%+80mV |
≤0.01%+80mV |
≤0.01%+80mV |
|
|
≤0.1%+5mA |
≤0.1%+10mA |
≤0.1%+5mA |
≤0.1%+5mA |
≤0.1%+5mA |
≤0.1%+5mA |
≤0.1%+5mA |
|||
|
纹波与杂讯 |
电压 |
≤3mV(rms) |
|||||||
|
电流 |
≤5mA(rms) |
||||||||
|
工作环境 |
0~40℃ ≤80%RH |
||||||||
|
尺寸 (WxHxD） |
cm |
250*150*330 |
|||||||
|
重量 |
kg |
8 |
13 |
8 |
13 |
12 |
12 |
12 |
|
